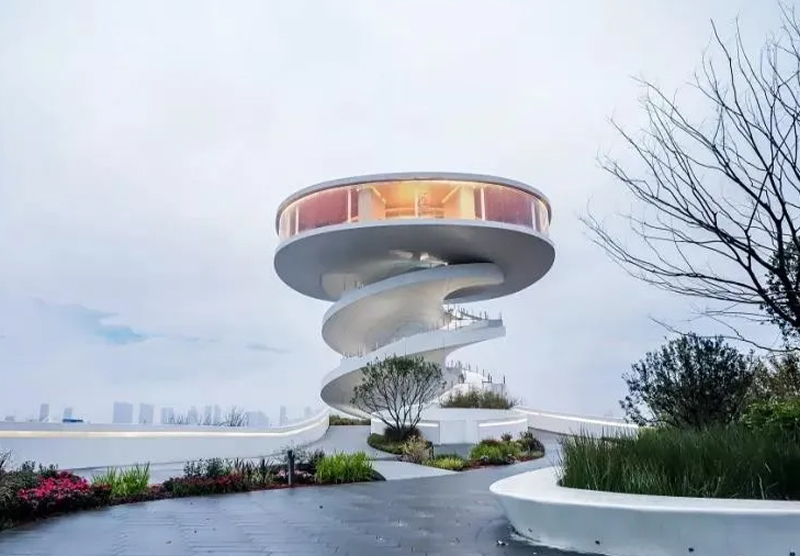

【Project name] China. Nanchang. Chaoyang New City. Oct Vanke. Century Waterfront. Clouds floating on the island.
【GRC project volume 】4000m²
【Designer】 Norway -Thomas Lindgard Fagernes China - Zhu Yufan Singapore -SCDA and Spence
[Design concept】 Tang Dynasty poet Liu Changqing: "Long days are not expected, birds and floating clouds are not", "bird Yu floating clouds" is named here. From a distance, the shape of the "floating cloud on Bird Island" is like a spiraling water column, slowly "growing", combining water, earth and sky to show this kind of soft "upward" power. The whole building is composed of soft arcs, and its design theme is called Nanchang Wave, showing the soft beauty of water. March spring flowers, may wish in this spring gradually thicker, with Xiaobian to bird island clouds, punch a taste of architectural poetry of the body and mind journey.
【 Project Overview 】
It is reported that Bird Yu Fuyun is jointly organized by Mr. Thomas, a Norwegian architect, Mr. Zhu Yufan, a Chinese landscape architect, Mr. Yu Zhao, an interior designer, and internationally renowned first-line masters such as SCDA and Spang, a world-renowned design firm in Singapore. The collision of the wisdom and inspiration of the masters gives Xiaoyu Fuyun Tower a more forward-looking connotation of The Times, fully integrates the humanistic spirit of Nanchang with the ecological nature, and has the characteristics of symbol, experience, joy and landscape. Such a tower with unique shape and rich content will become a new landmark of Nanchang city. Combining humanity and nature, art and technology, Xiaoyu Fuyun is a collision between the wisdom of international design masters and Chinese culture, giving Xiaoyu Fuyun a more forward-looking connotation of The Times. 2020.1.18 With the opening of the floating clouds on Xiaoyu Island, Belida GRC invites you to witness the century dream of Nanchang with Vanke.
【 Project Overview 】

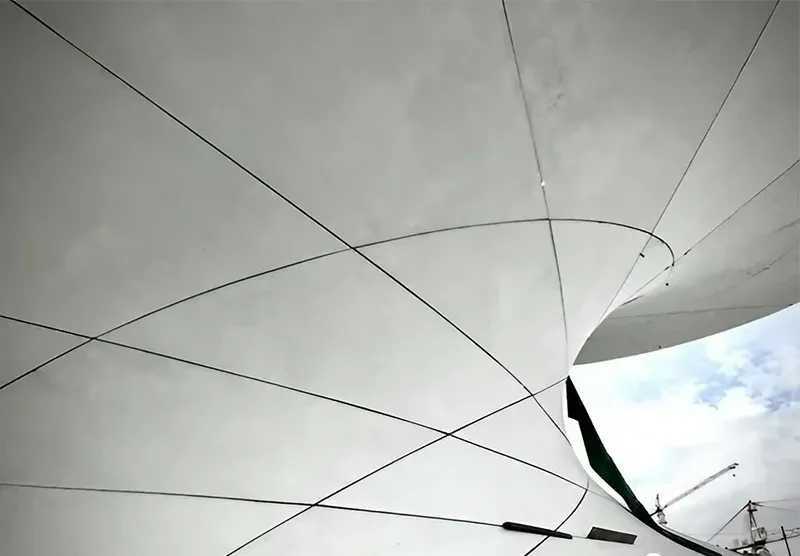

In order to perfectly reflect the design theme, the client prioritised Belida GRC as the preferred material for the exterior facade. Beilida GRC hyperbolic board through the technical artisans and designers of the wisdom of the light perfect fit, interpretation of this rotating upward bird Yu cloud tower project, the entire bird Yu cloud facade is composed of GRC hyperbolic board, a total of 657 pieces, standing in the 33 meters of bird Yu cloud tower, you will feel the crafty arc, with nature clever fit, Beilida GRC materials give this building a smart beauty, future, classical, science fiction, unconventional, in the bright and beautiful elephant lake, attracting everyone's eyes.
【 Design stage 】
GRC board number production to ensure the accuracy of installation: the completion of the design drawing is only the first step in the presentation of the effect, in order to ensure the flatness of the installation of the special-shaped curved board GRC, from the early design to the landing realization, the whole design cycle is controlled. The company first organized designers in the system for GRC plate cutting management, plate by plate label, control the intermediate process. Ensure that the installation error is controllable, and in the later stage according to the label, board by board acceptance.

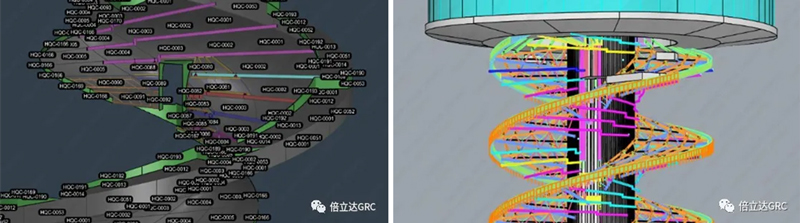

【 Steel structure RHINO model breakthrough difficulties 】
As the connection member between the concrete core cylinder and the external GRC board, the accuracy of the steel structure directly affects the flatness of the GRC board installation and has a huge impact on the effect. In the early design stage, the 3D modeling rhino tool is introduced to carry out special research on the structural problems. The design department, the factory and the construction unit will conduct multiple remolding and drawing review. Ensure the accuracy of steel structure drawing.
【 Production stage 】
In the production stage of the factory, the production of the mold is crucial, which is related to the accuracy of the finished product. After receiving the project, Blida Huaxi Division organized the factory to strictly control the production accuracy of each product plate during the production process, and used the total station to accurately detect the size of each mold. After the finished product was made, pre-assembly was carried out in the factory to ensure that each piece of product would be installed without deviation on site and meet the requirements of construction and installation.

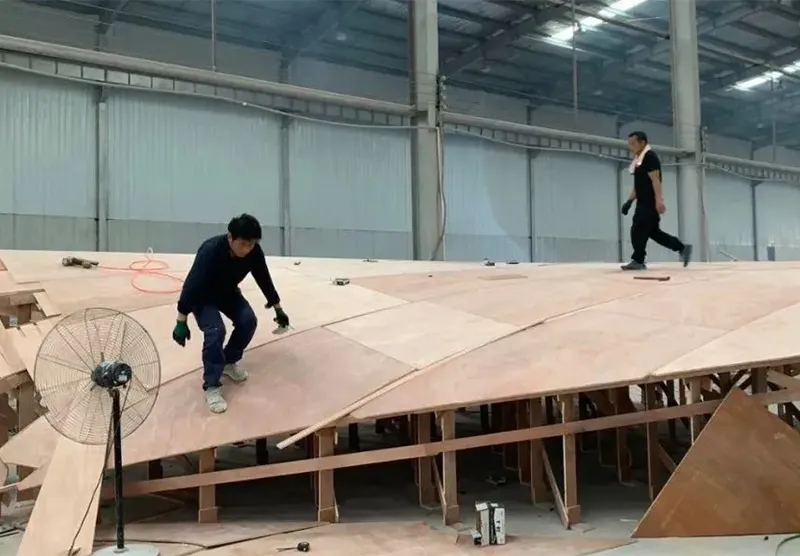

【Mold making scene】

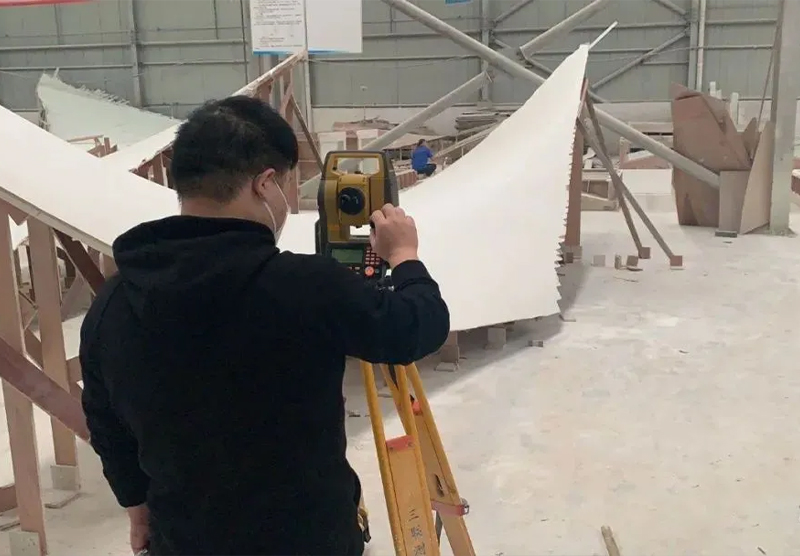

【The use of total station for accurate mold detection】

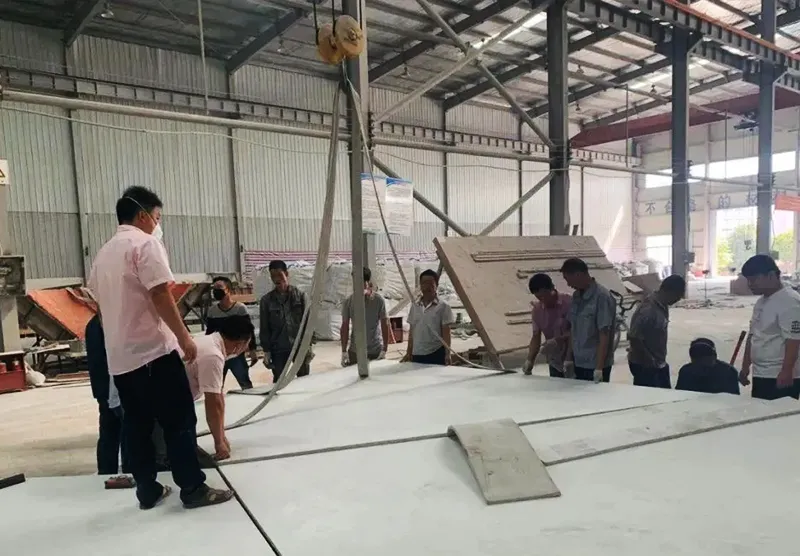

【 Product factory pre-assembly stage 】
【 Installation stage 】
657 special-shaped GRC plate curved installation, because there will be errors in the construction of the main structure and steel structure, especially the suspension triangle truss, the end will have a deflection change, so in the GRC modeling, the main structure and triangle truss on all the content are entered into the model, and the GRC structural skeleton is also taken into account, do a good collision inspection, to avoid the skin problem. Actual inoperable problems.

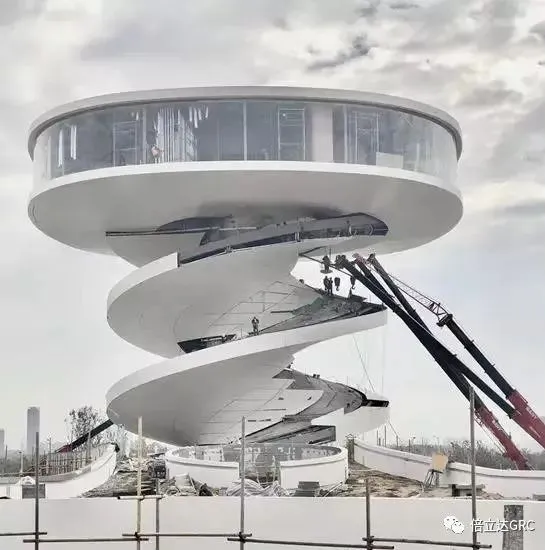

【8.5M cantilever triangle truss fixed】
Due to the aerial positioning of the triangular truss, there is only an operating platform at the support position, which is difficult to actually place. The construction group is hoisted into position by a truck crane, and then welded with a bull leg at the support position for temporary fixing. The tail position is accurately positioned by a total station measuring point combined with manual tensioning positioning, and then welded.
【Spiral staircase cantilever GRC plate installation completed】

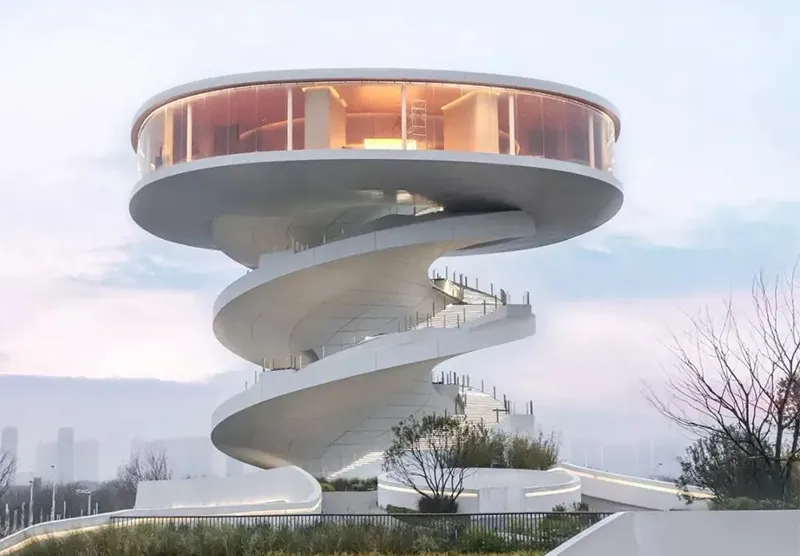

【 West Side effect 】
The high-texture GRC facade echoes the sky, white clouds, sunlight and the surrounding natural environment, making the project attracted visitors even before it was opened. Because of this, some people come here to meet, and some people seek themselves here!
